Single Conductor UL Wire

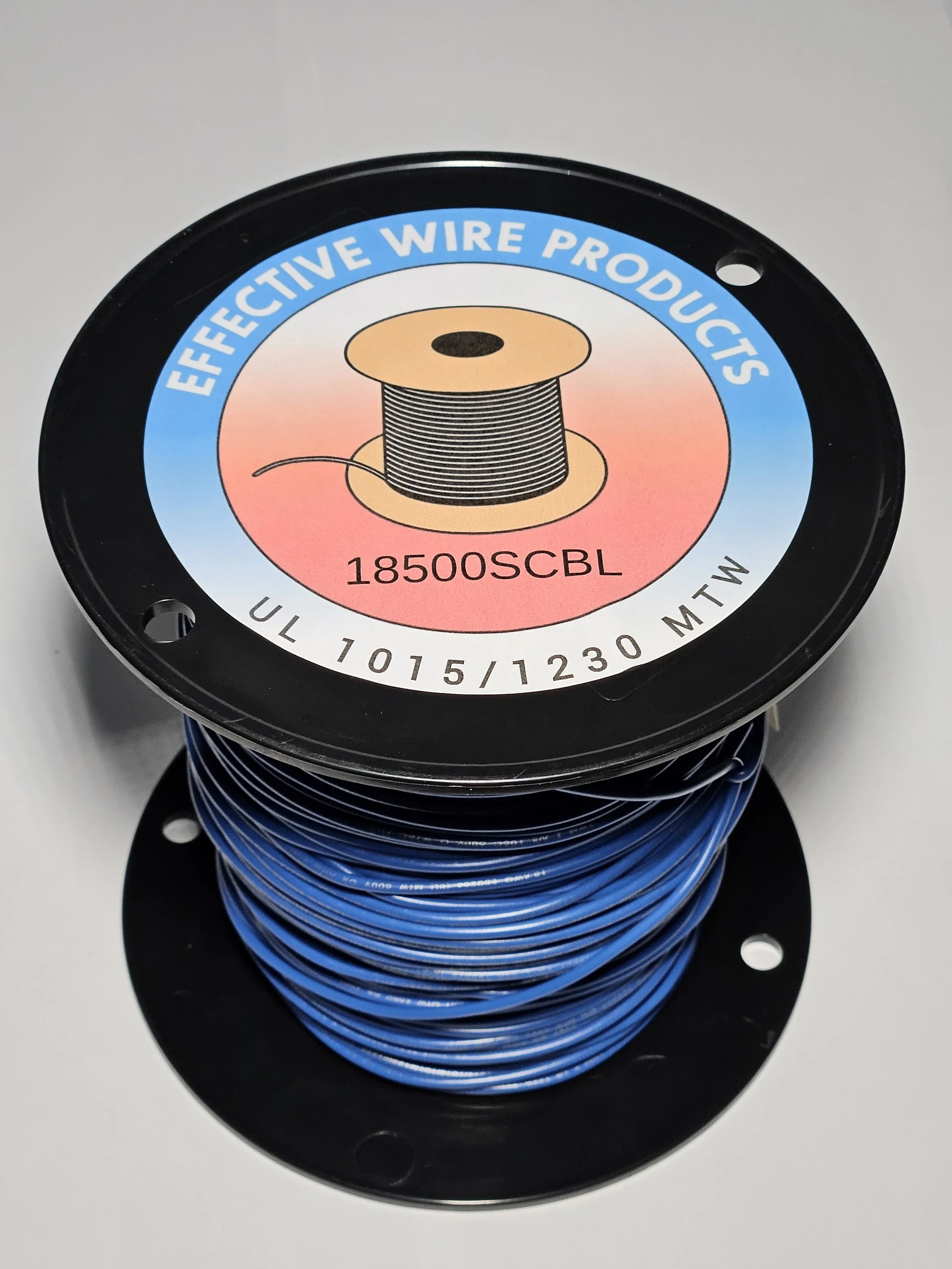

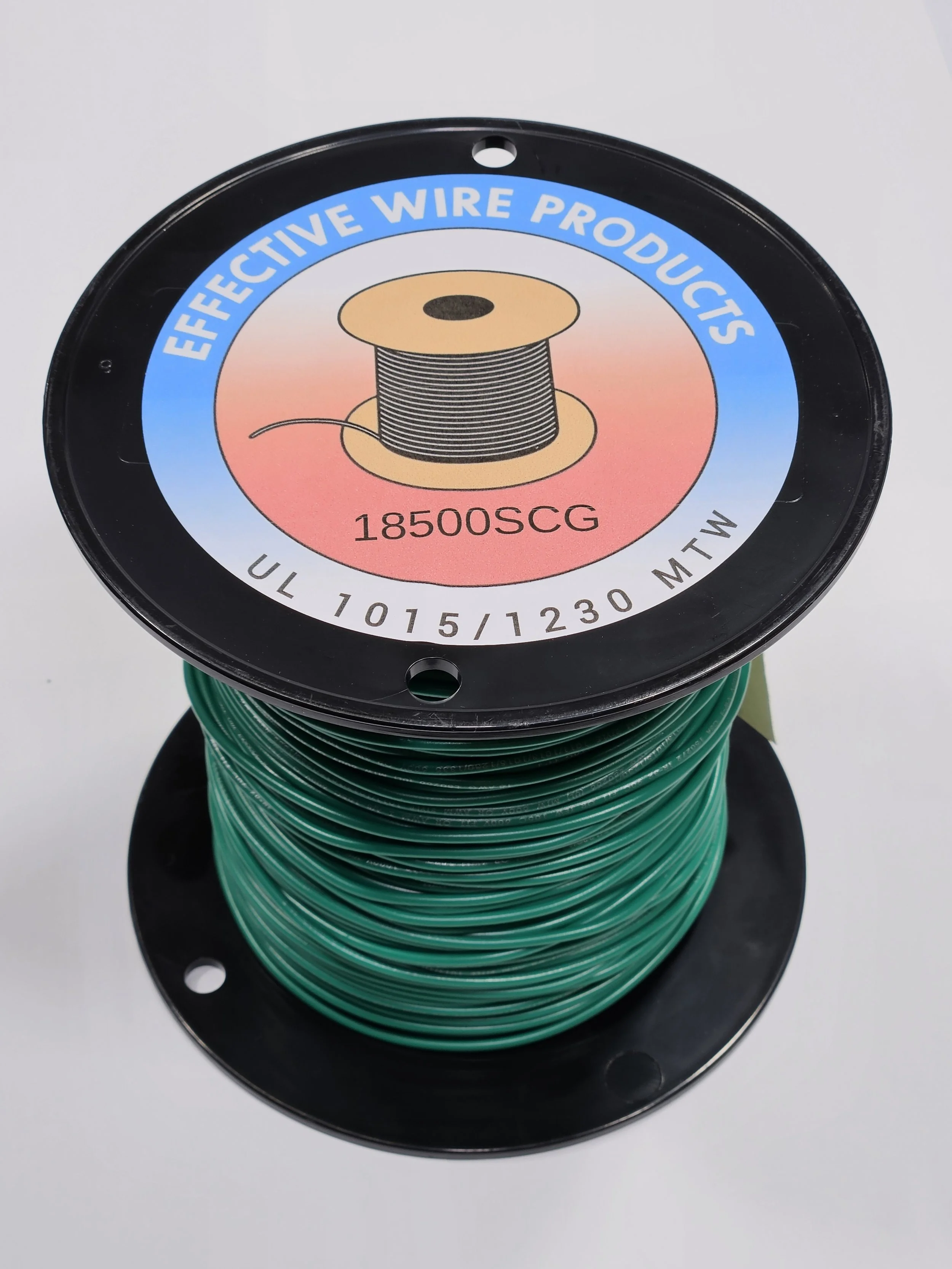

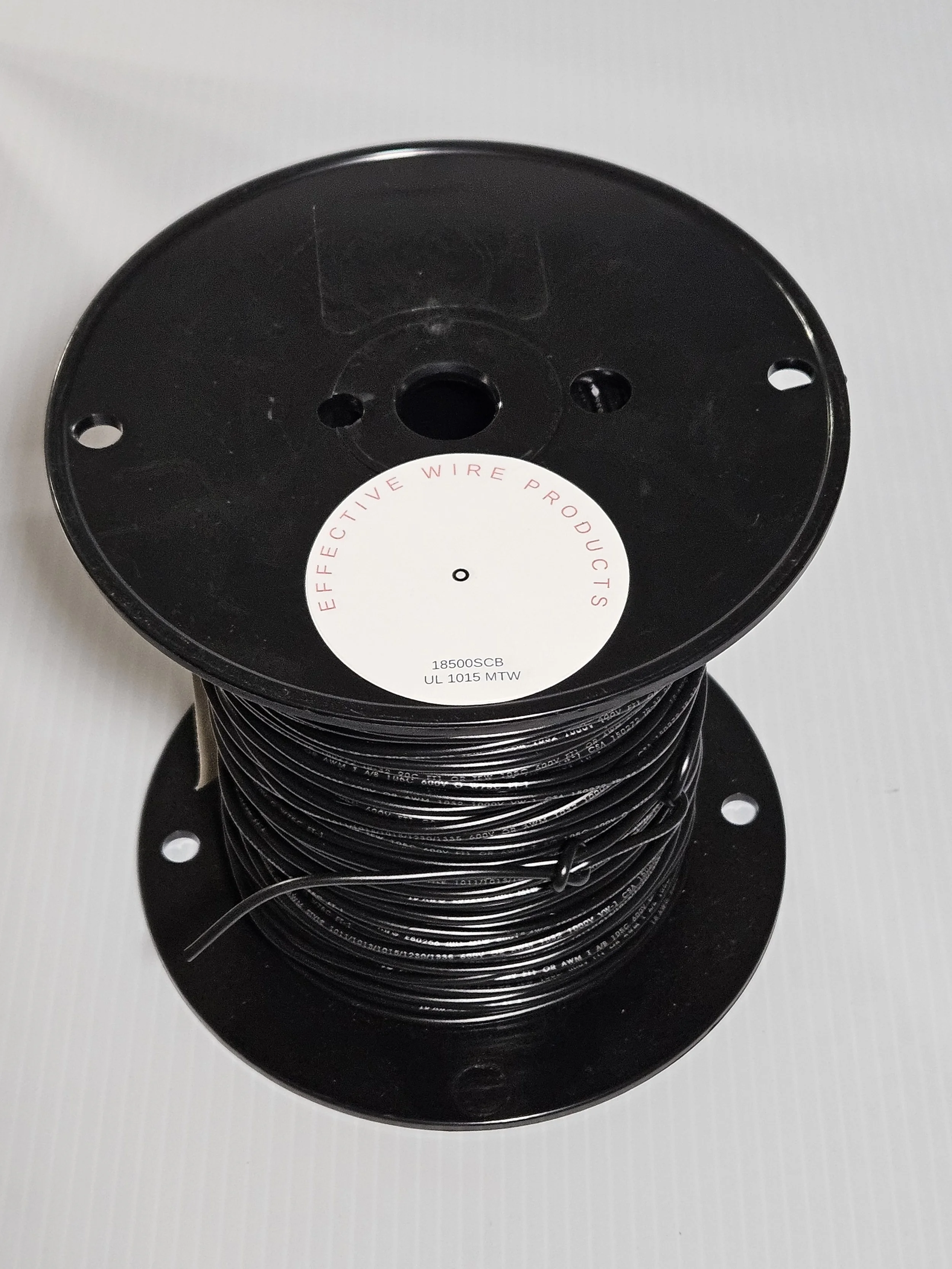

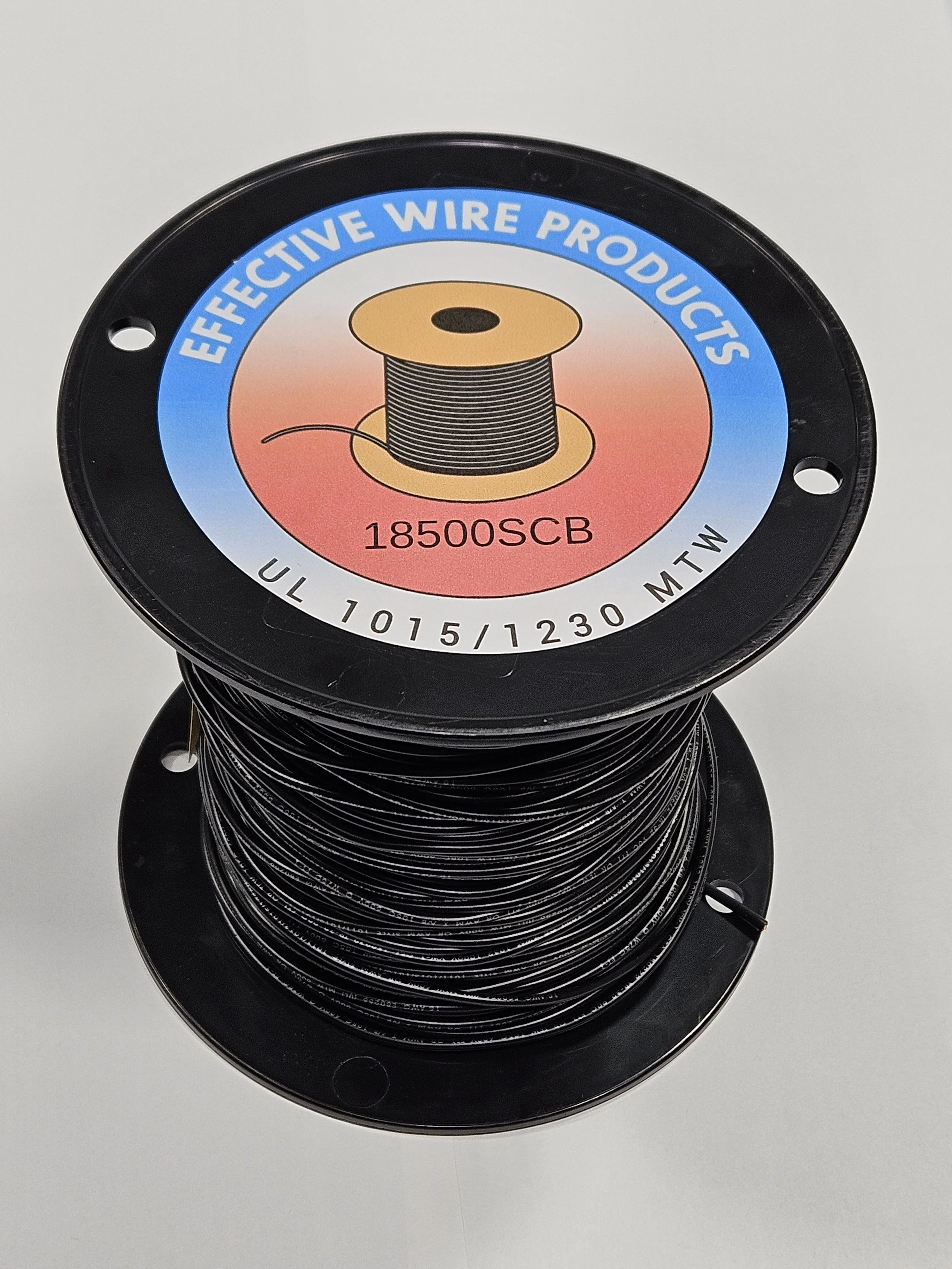

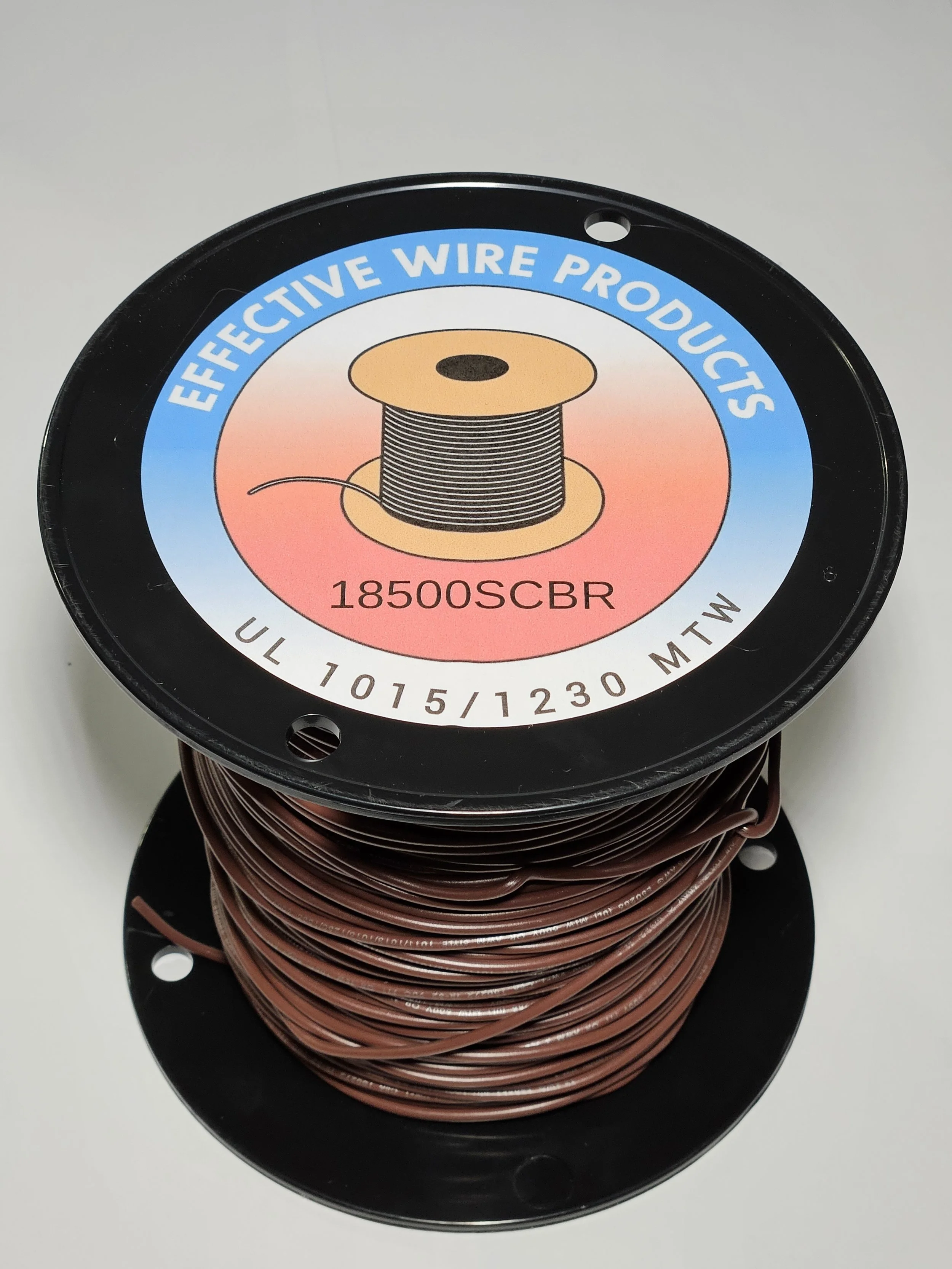

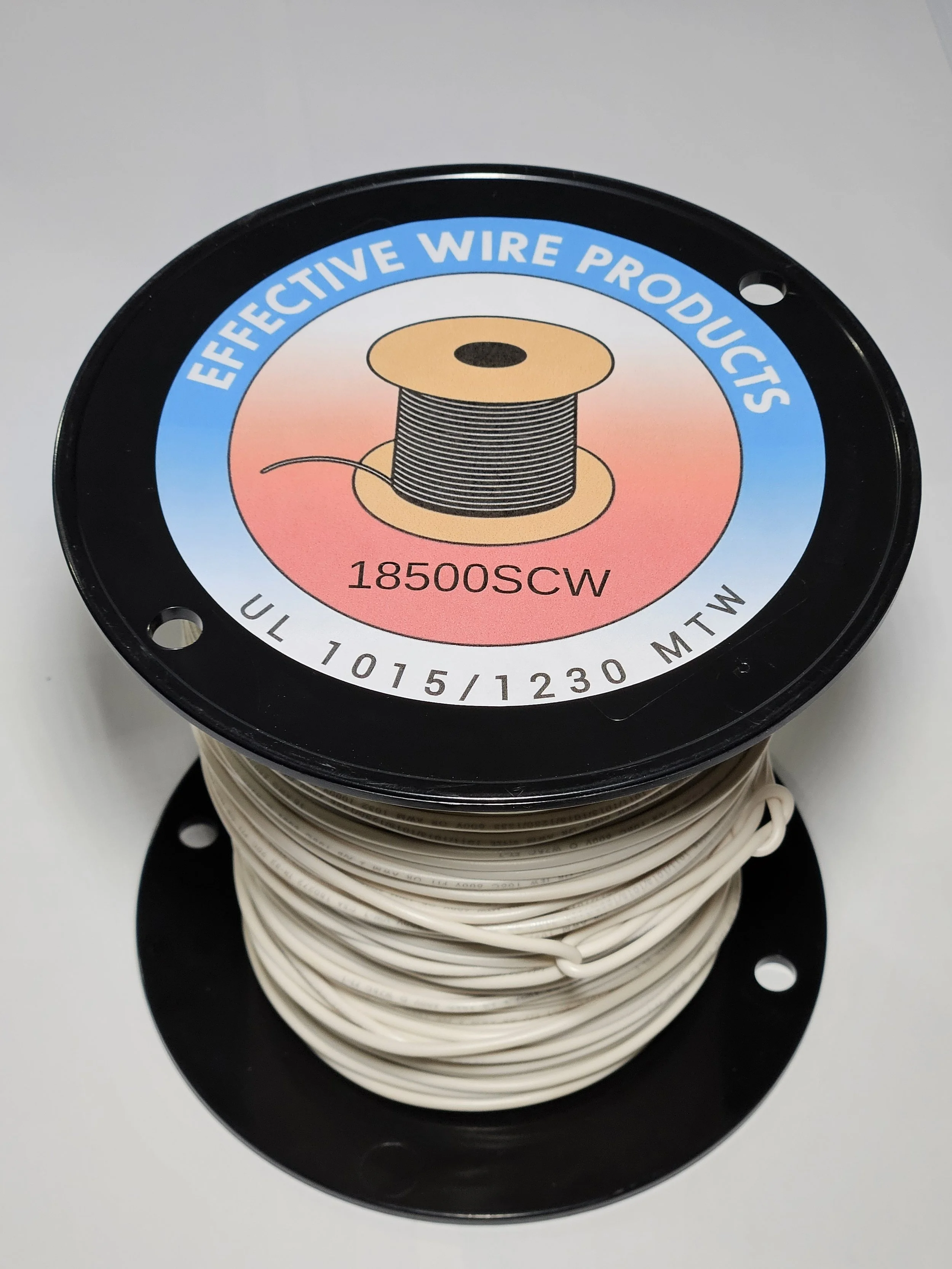

18 Gauge Single Conductor MTW UL Wire, 500 ft Spool
$47.00

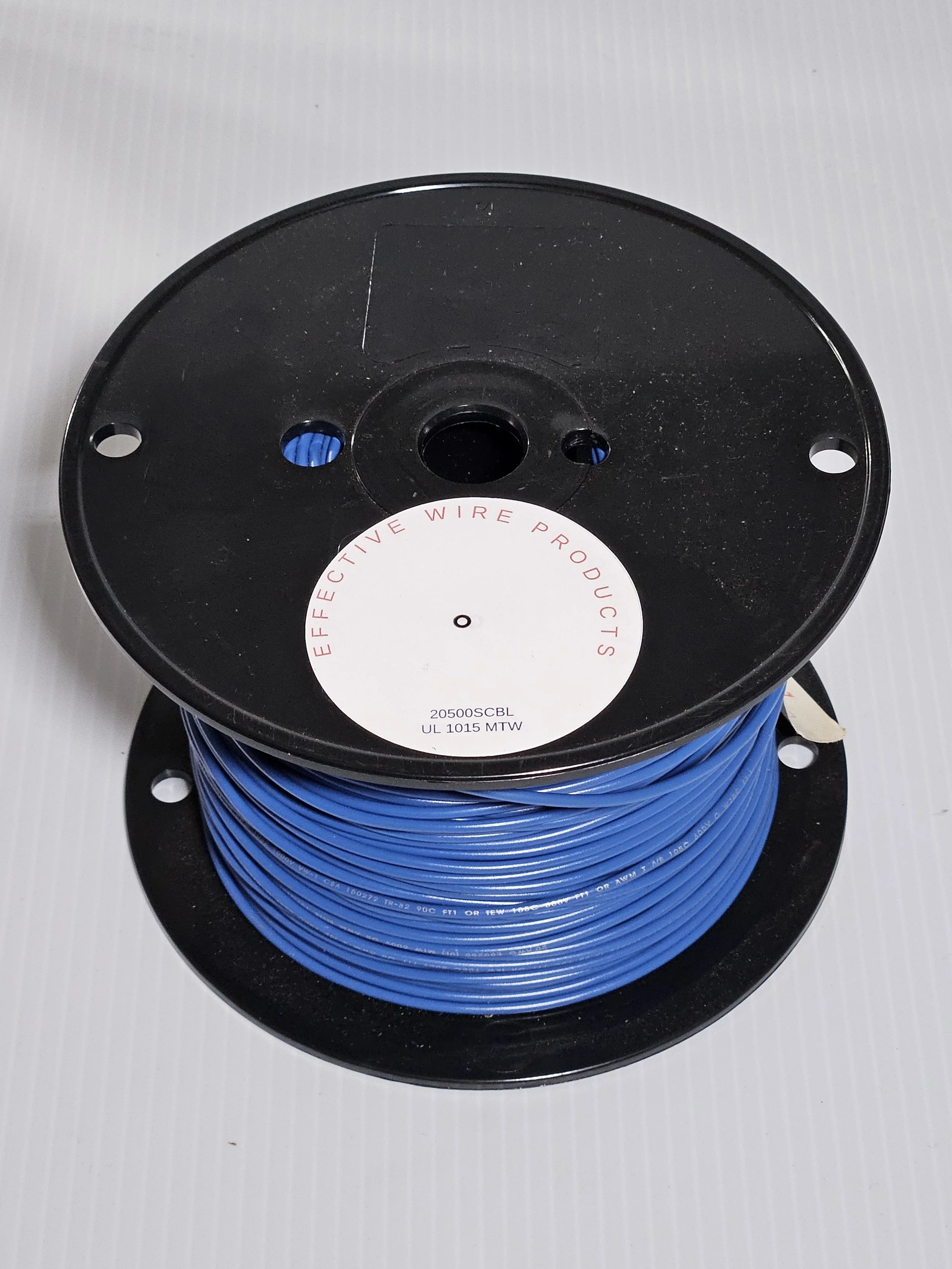

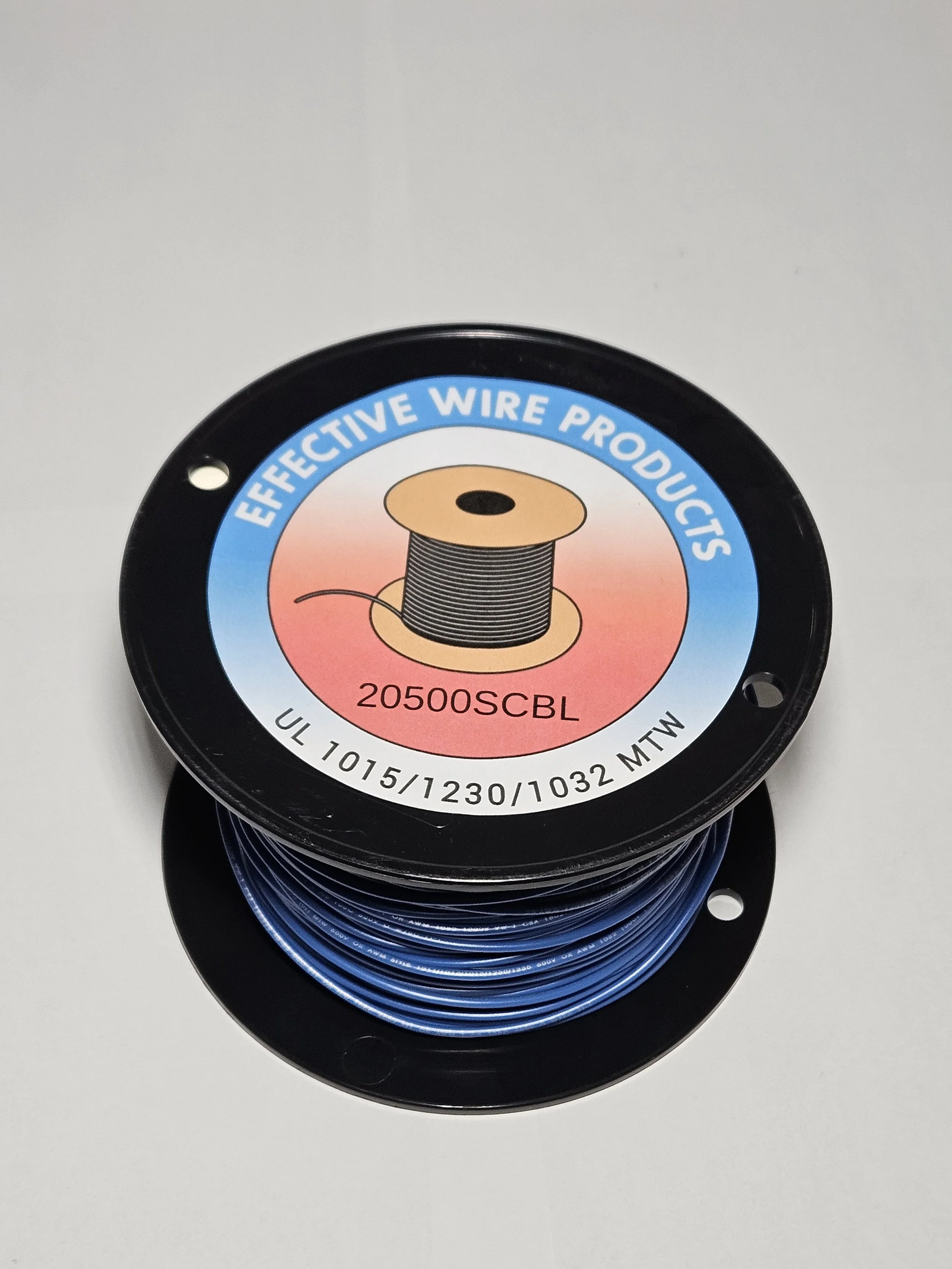

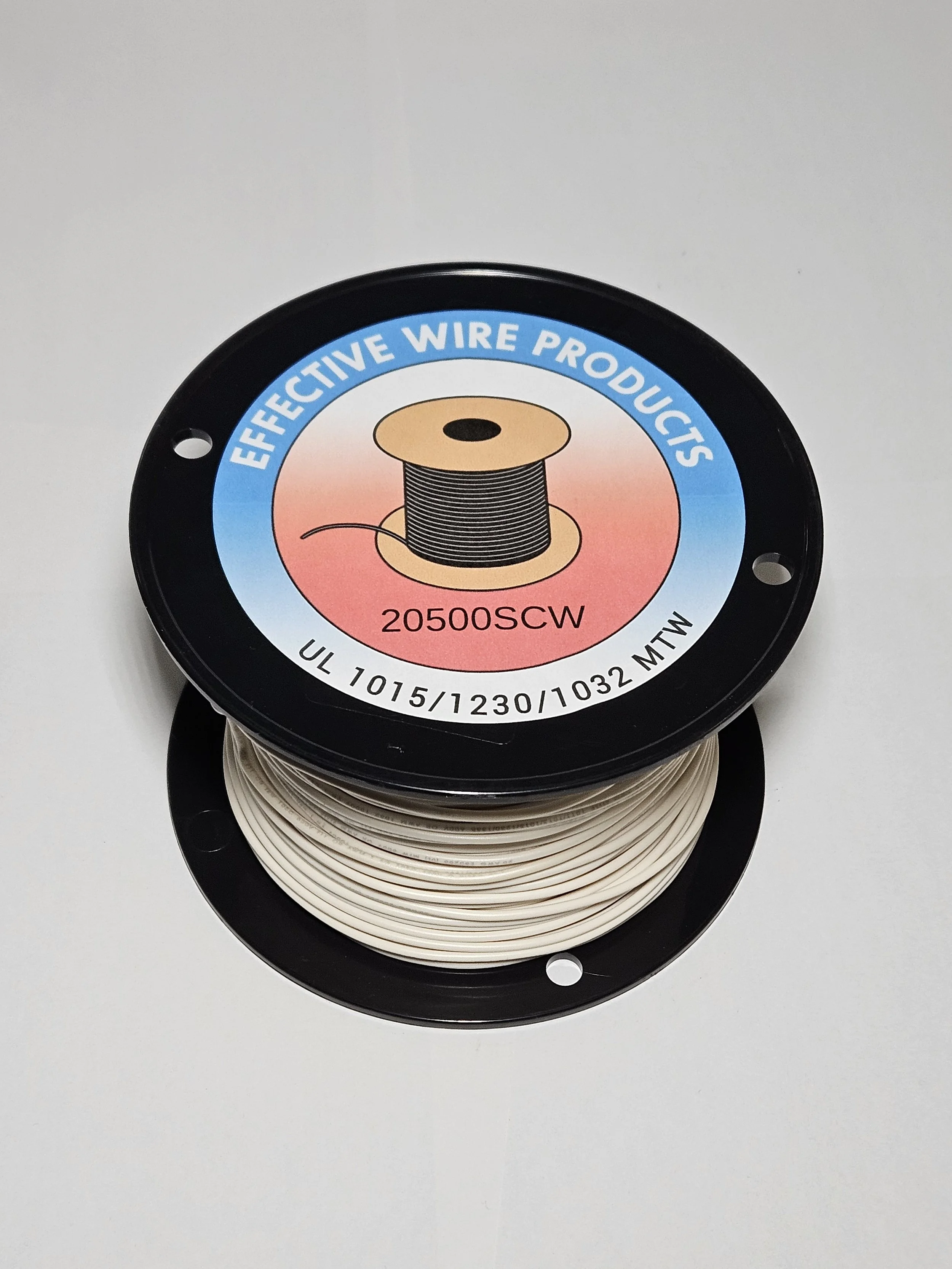

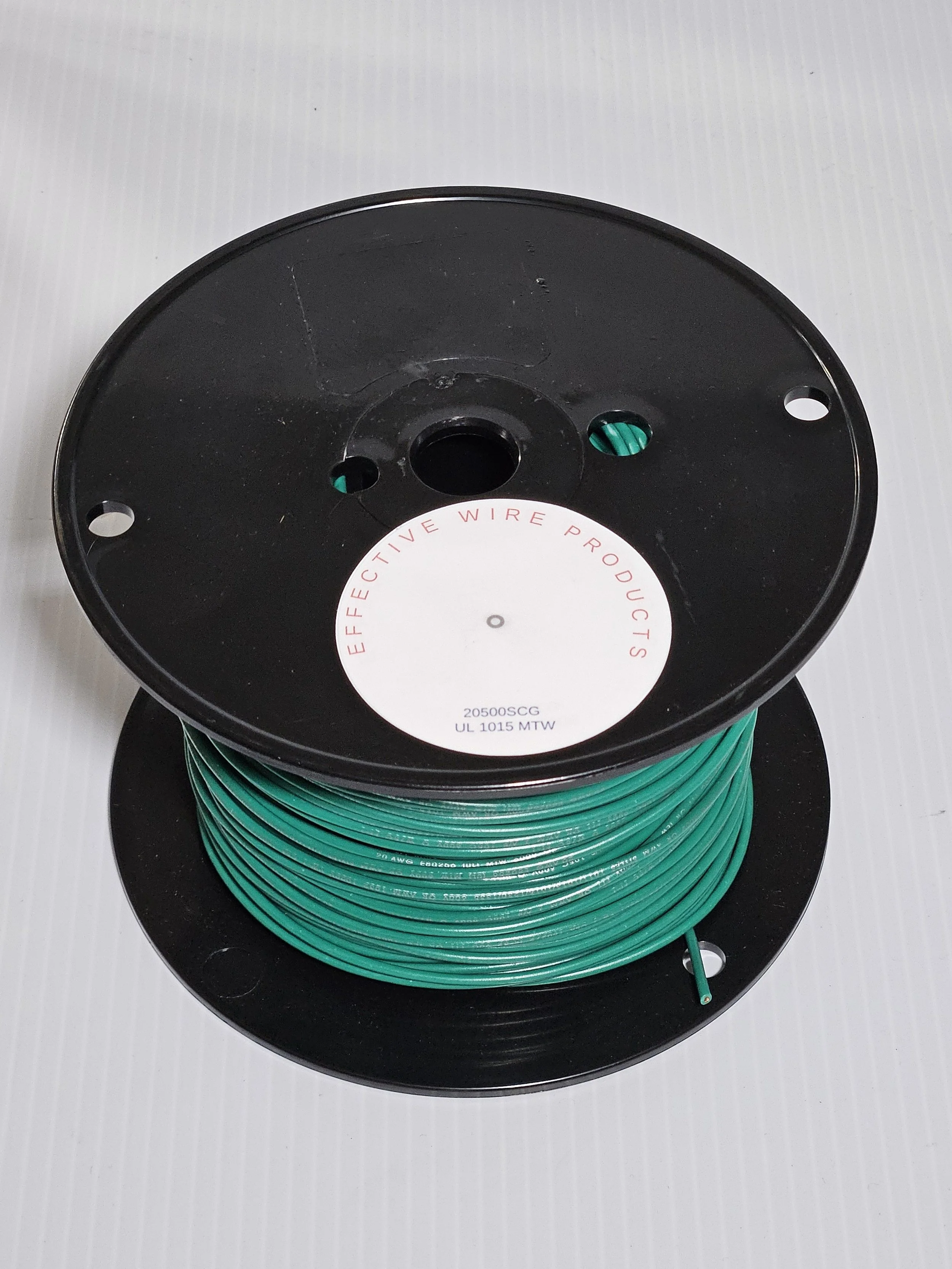

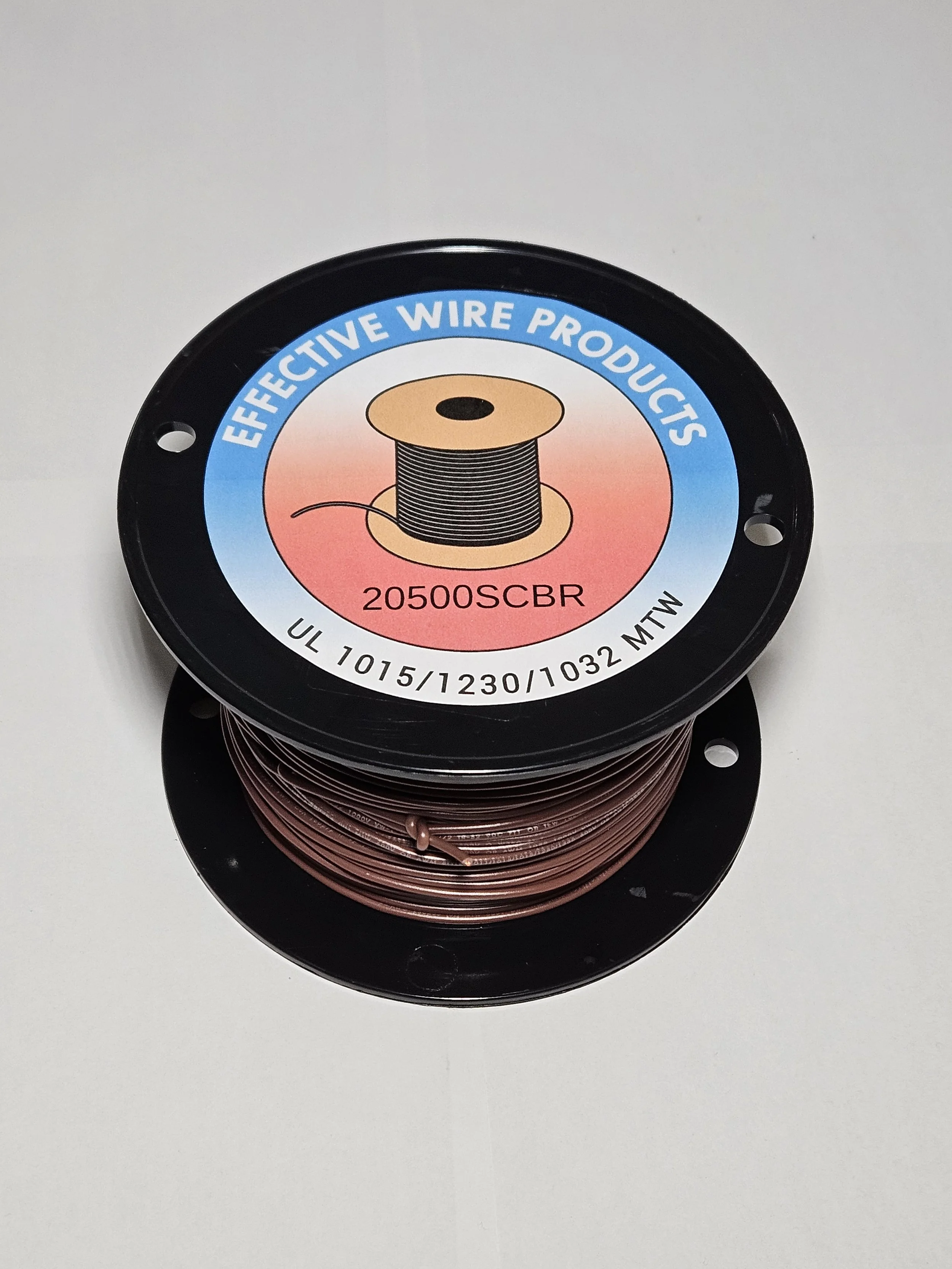

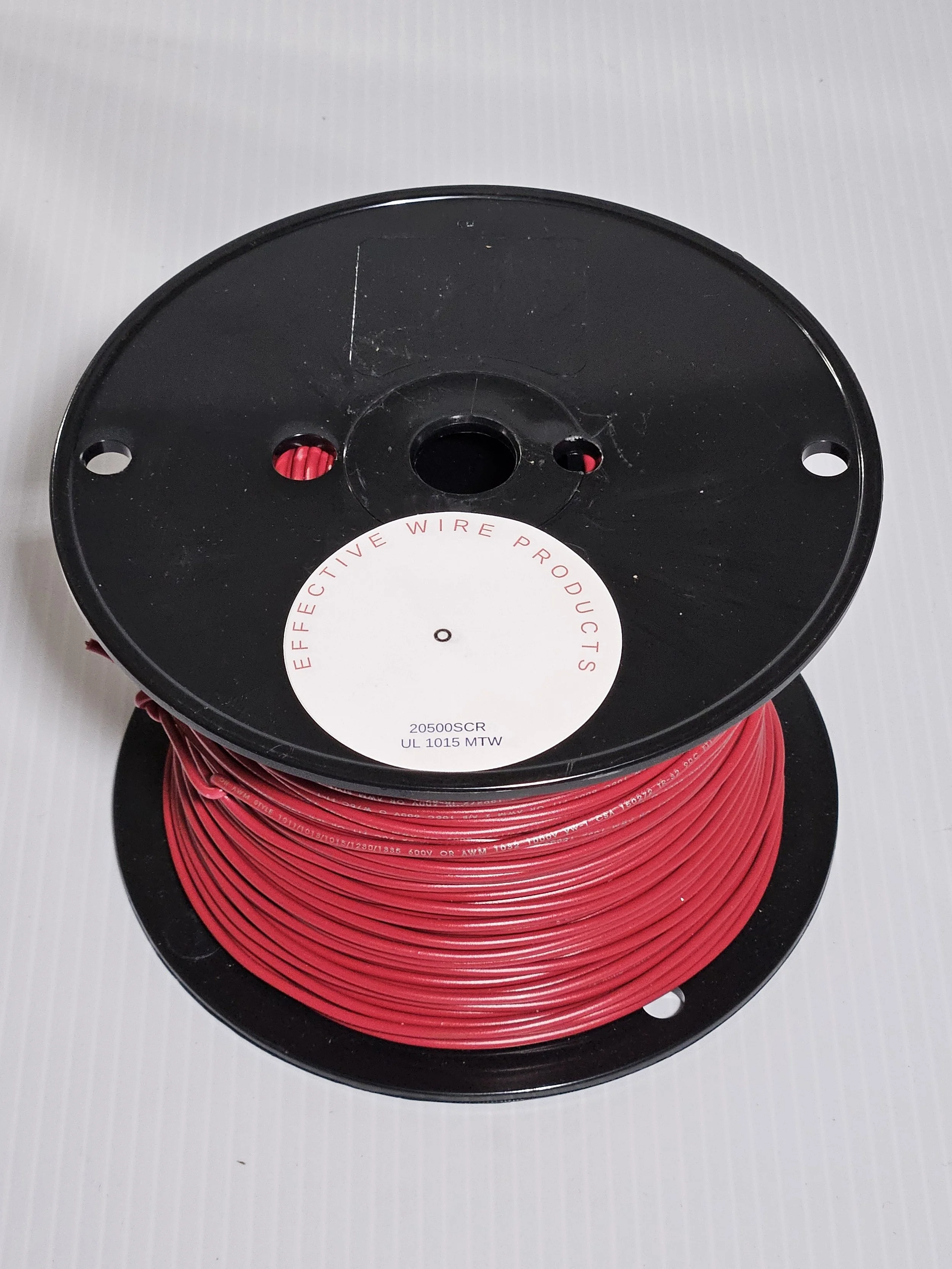

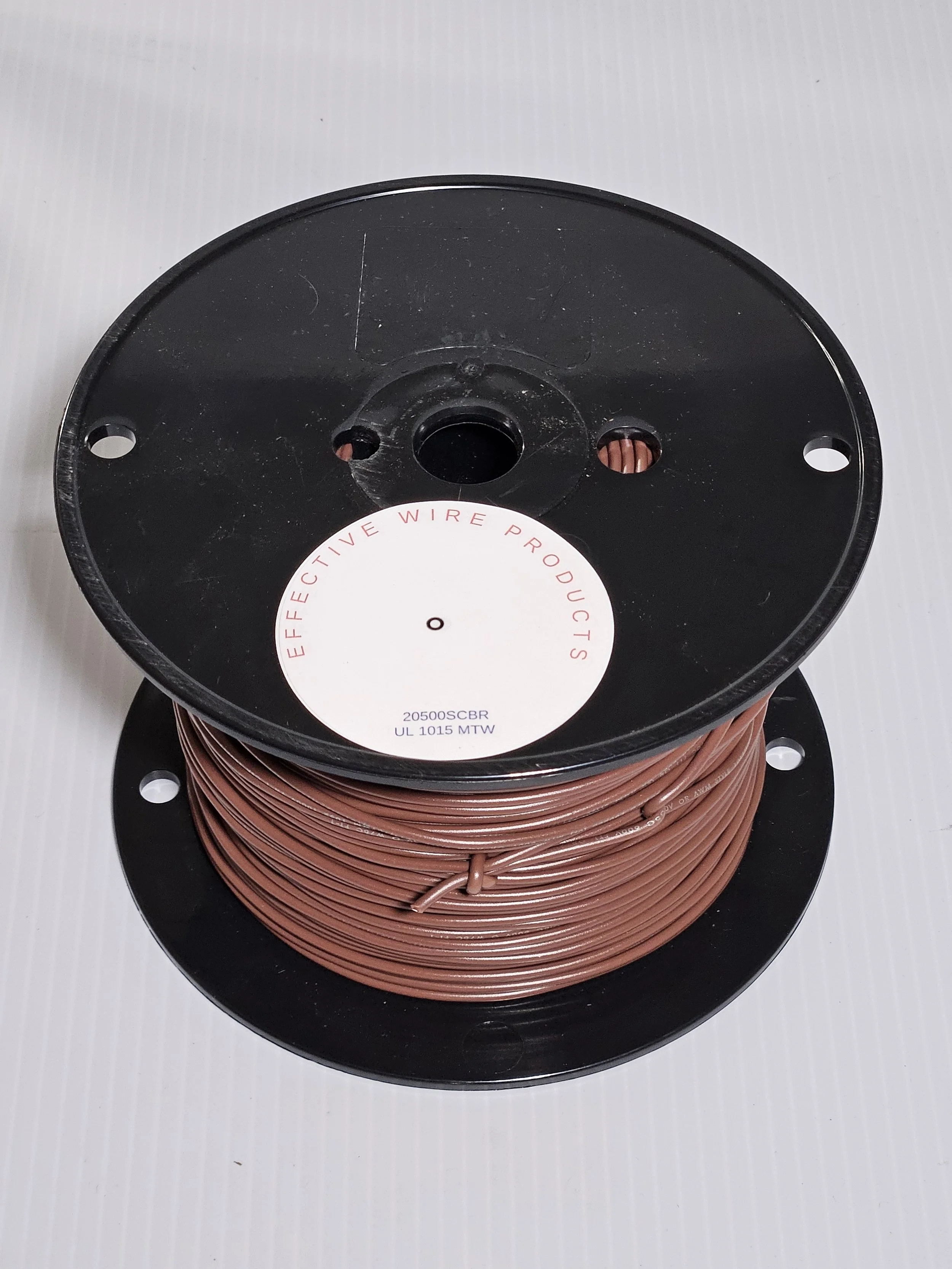

20 Gauge Single Conductor MTW UL Wire, 500 ft Spool
$32.00

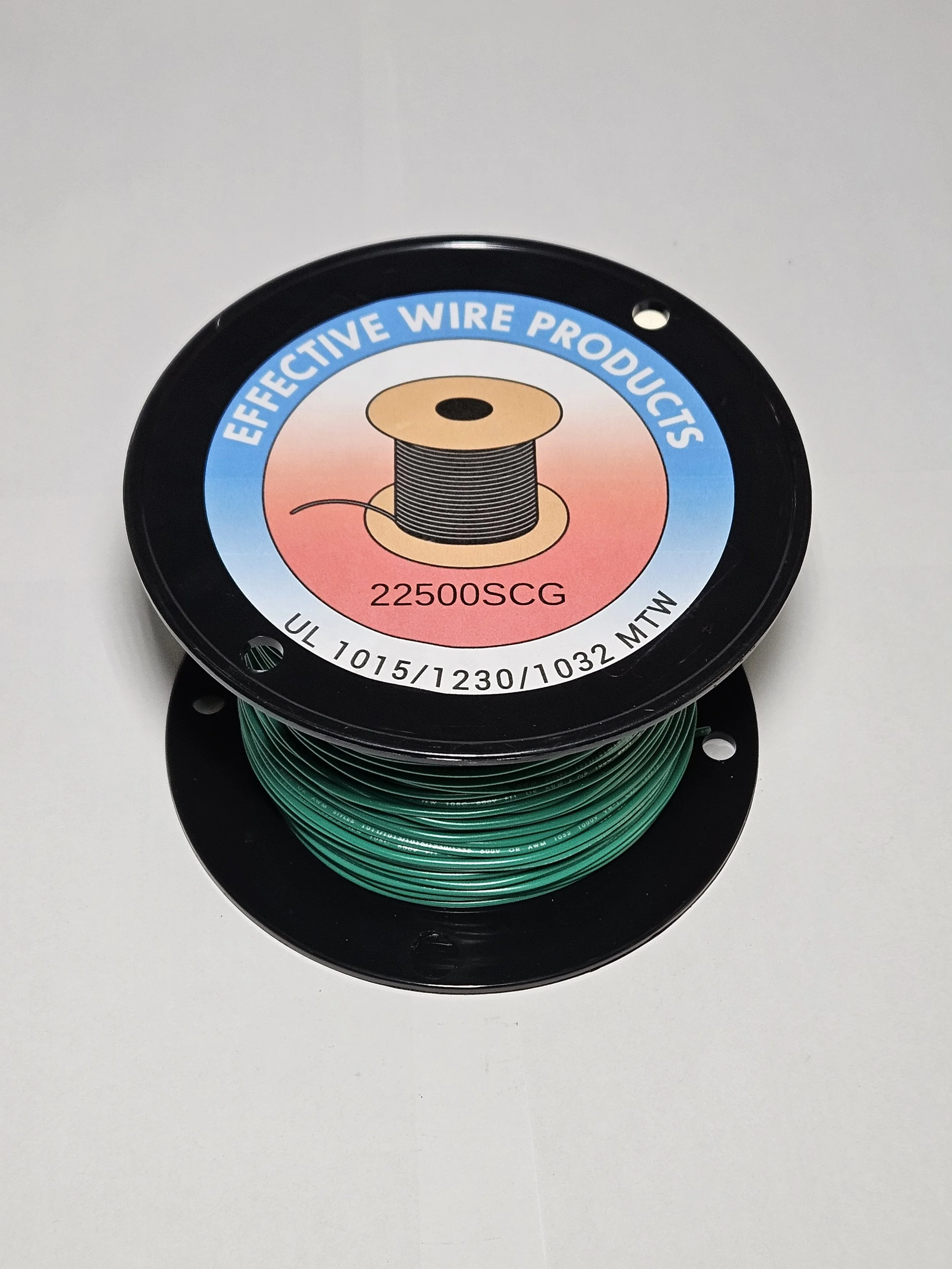

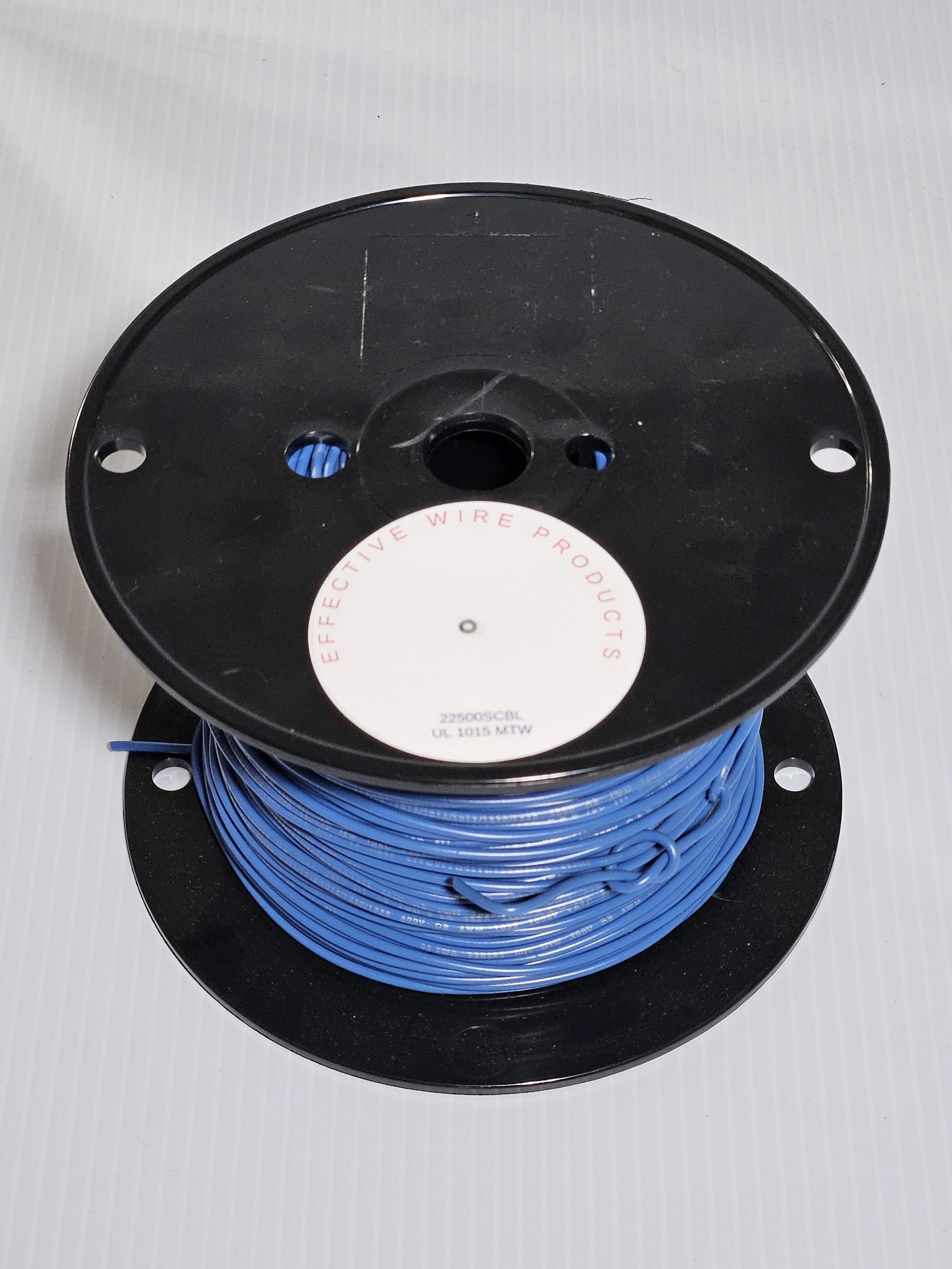

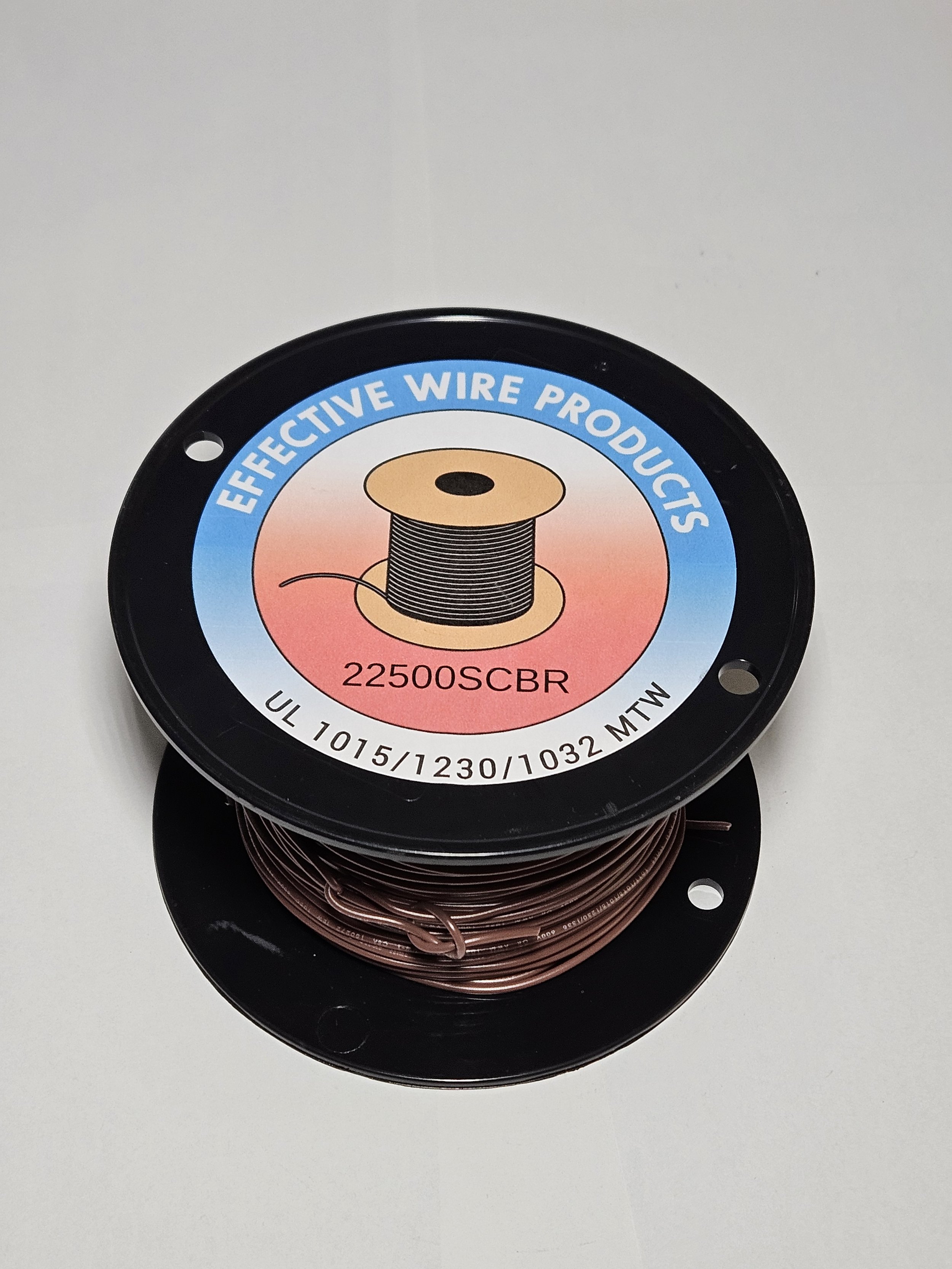

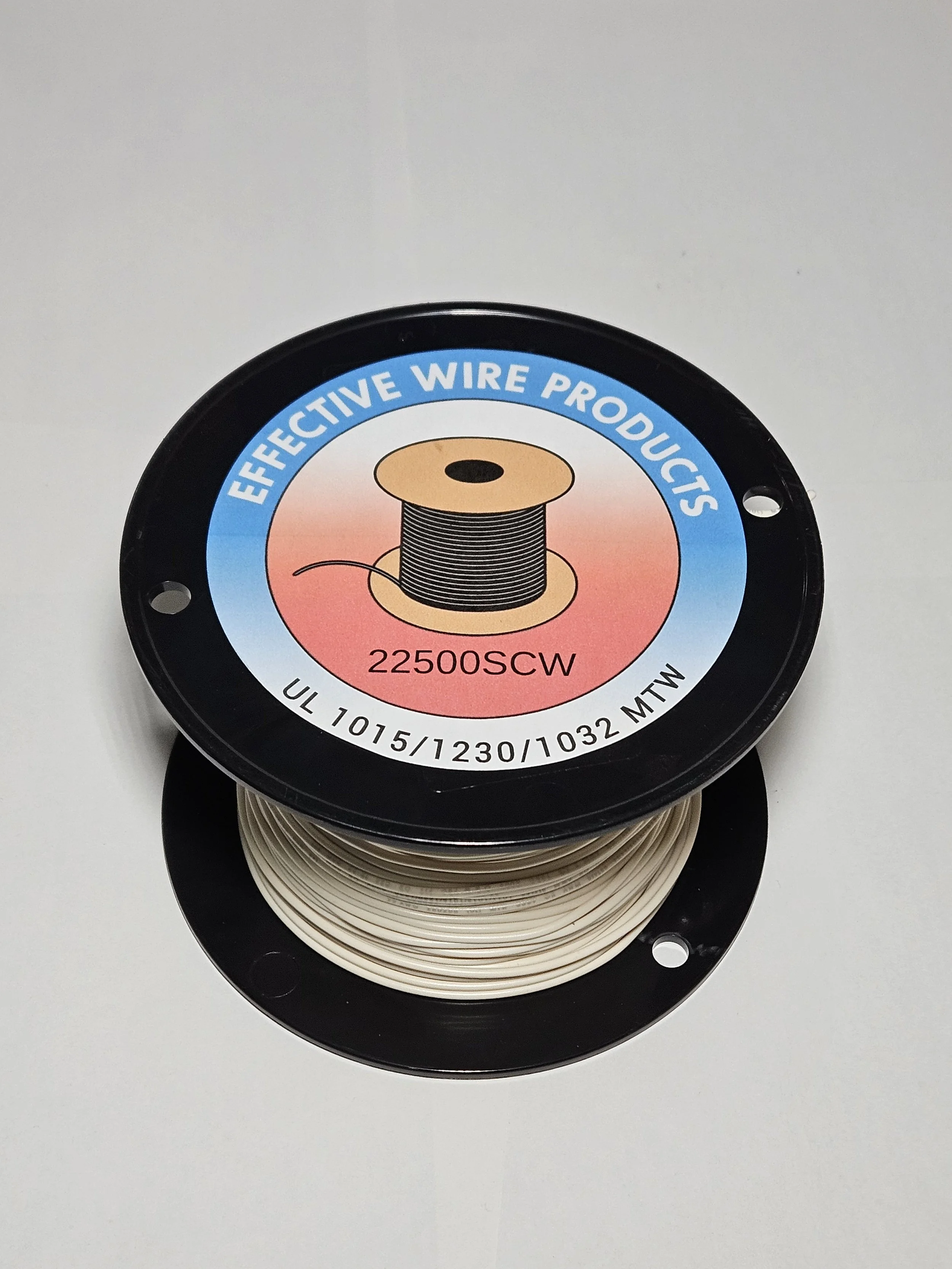

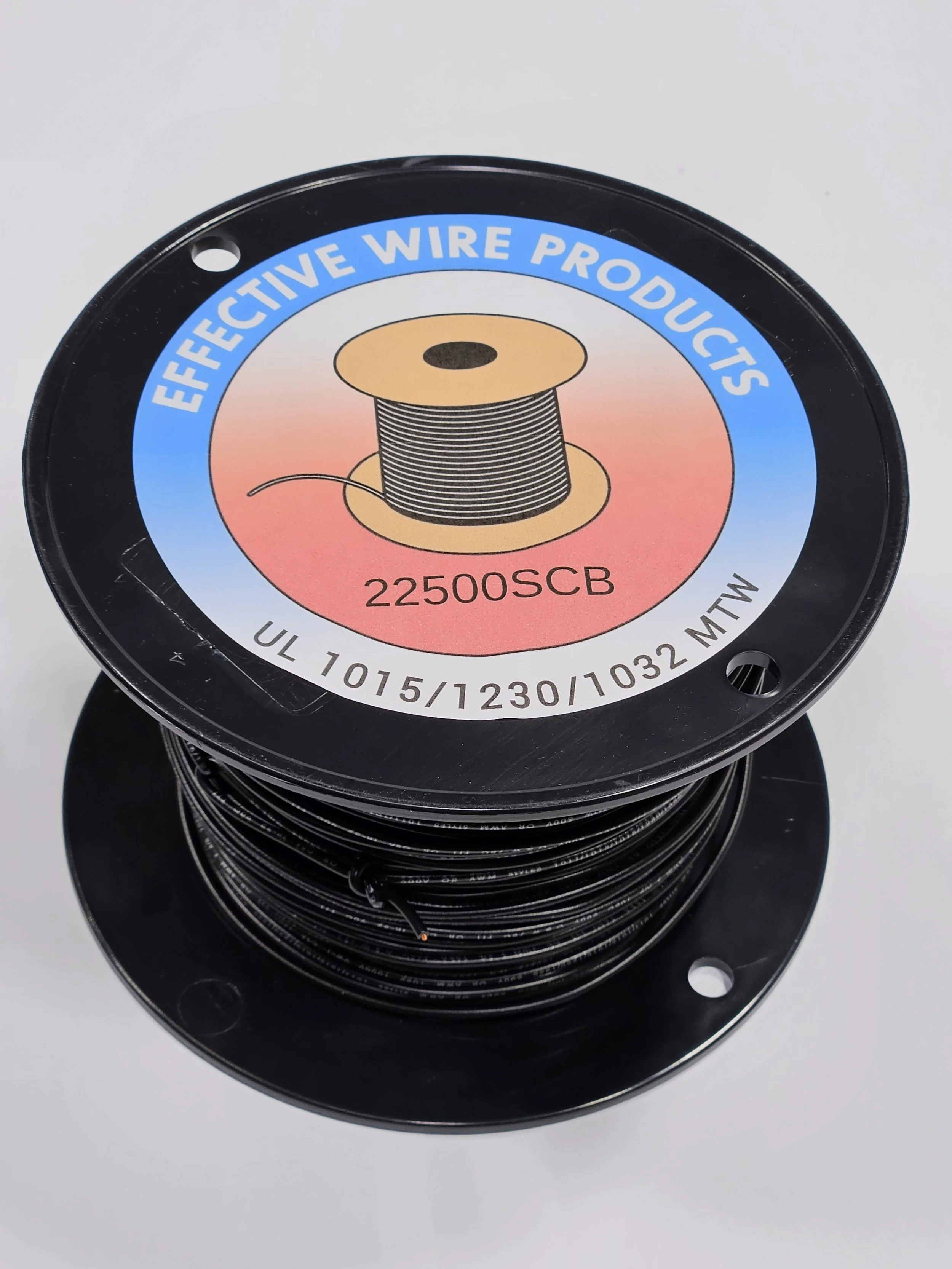

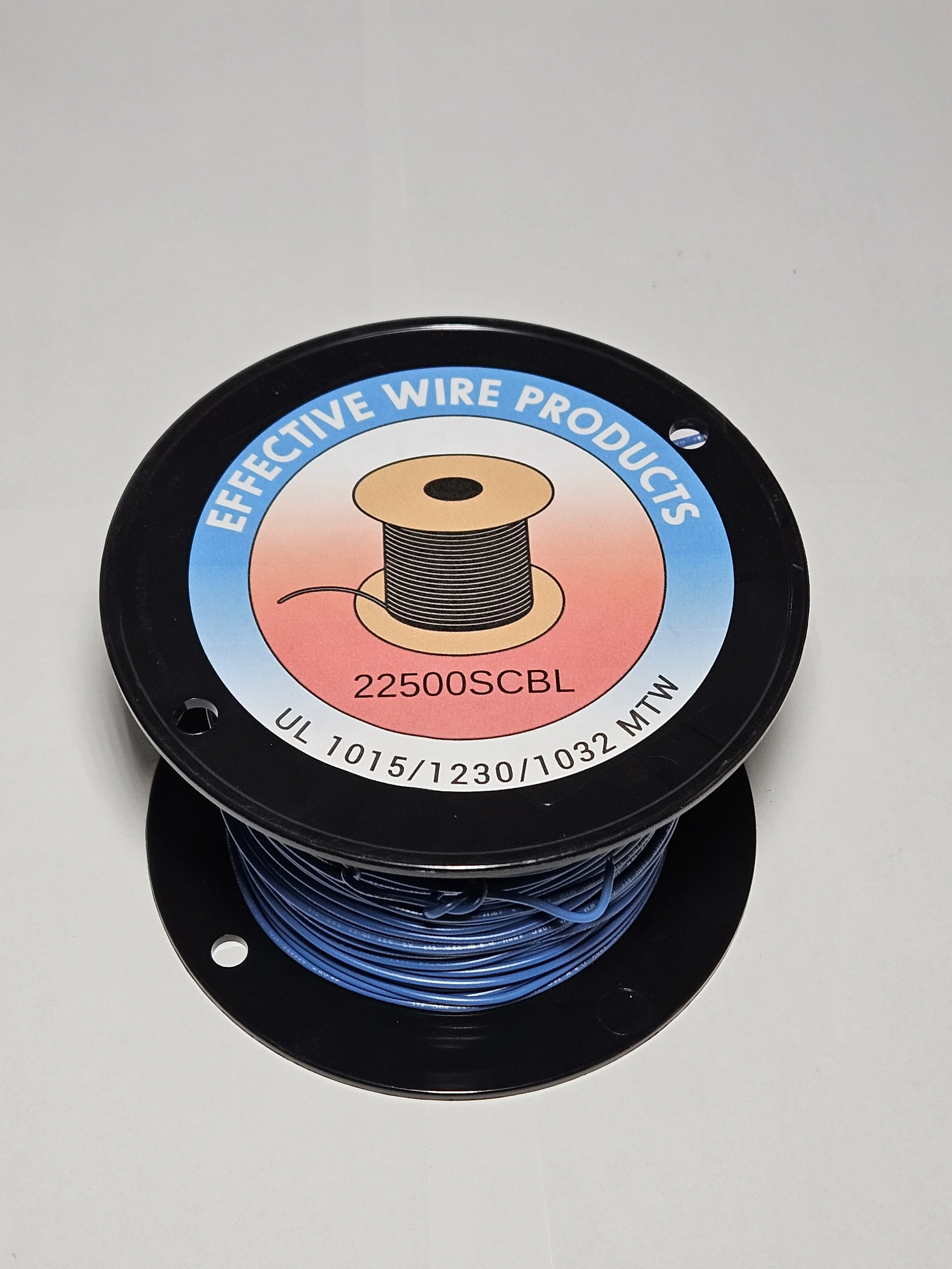

22 Gauge Single Conductor MTW UL Wire, 500 ft Spool
$27.00

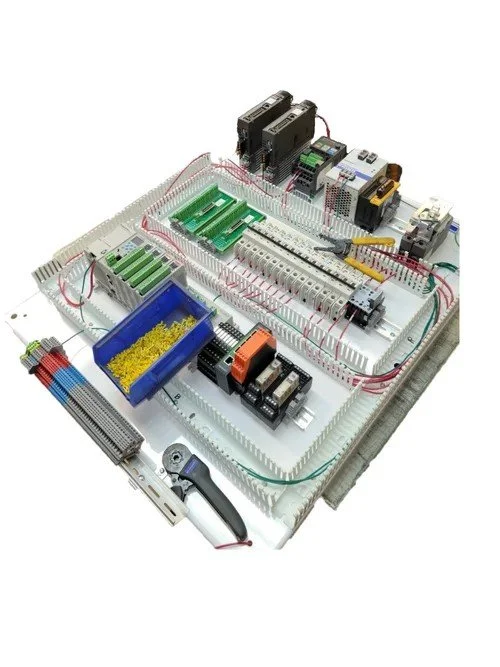

UL control panel

Specifications

Insulated Wire made in the USA

  • Conductor: Tinned or bare copper (solid or stranded)

  • Insulation: PVC (Polyvinyl Chloride), nominal wall thickness of 0.030”

  • Voltage Rating: 600 VAC

  • Temperature rating: 105 C (221 F)

  • Flame Test: VW-1 flame test rated

  • Compliance: UL 1015/1230/MTW, CSA TEW, AWM styles

Single Conductor UL Wire refers to a category of electrical wire that meets safety and performance standards set by Underwriters Laboratories (UL). These wires are used in a wide range of applications, from internal appliance wiring to industrial control systems, panel builders. Here's a breakdown of key types and features:

🔌 General Features

  • Conductor: Stranded copper

  • Insulation: PVC

  • Voltage Rating: Typically up to 600V

  • Temperature Rating: Ranges from 60°C to 200°C, depending on insulation type

  • Compliance: UL 1015, UL 1230

  • Applications: Internal wiring of appliances, control panels, switchboards, meters, and industrial equipment

✅ Advantages

  • High safety and reliability

  • Flame, moisture, and chemical resistance

  • Wide range of sizes and insulation types

  • Color-coded for easy identification

🧵 Popular UL Wire Styles

UL 1015

  • Insulation: PVC

  • Voltage: 600V

  • Temperature: 80–105°C

  • Use: Internal wiring of appliances and electrical equipment

UL 1230

  • Insulation: PVC

  • Voltage: 600V

  • Temperature: 105°C (60°C in wet/oil conditions)

  • Use: Control panels, meters, switchboards

  • Features: Flame-resistant (VW-1), abrasion and chemical resistant
